Fieldset and legend HTML

2 min read

Field Set

  • It is used to group related elements in an HTML form, often by enclosing them within a box.
  • There is no restriction to the kind of elements that can be inside a fieldset, but they are mostly used to group related input type of elements. Forms HTML

Attributes

  1. disabled: It specifies that the elements belonging to the fieldset should be disabled.
  2. form: It specifies the id of the form that the fieldset is to be considered a part of.
  3. name: It specifies the name for the fieldset.

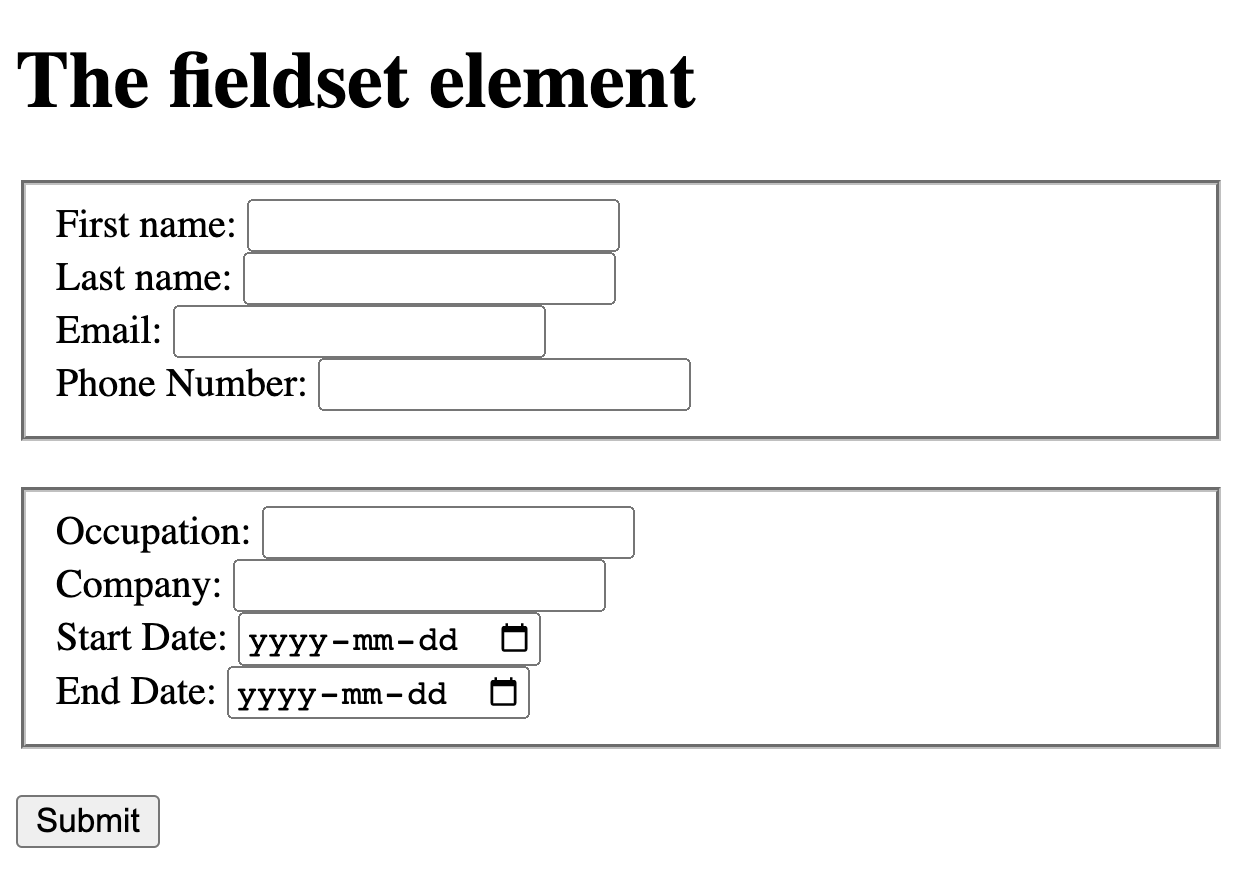

<!DOCTYPE html>
<html>
    <body>
        <h1>The fieldset element</h1>

        <form>
            <fieldset name="personal_details">
                <label for="fname">First name:</label>
                <input type="text" id="fname" name="fname"><br>
                <label for="lname">Last name:</label>
                <input type="text" id="lname" name="lname"><br>
                <label for="email">Email:</label>
                <input type="email" id="email" name="email"><br>
                <label for="phone">Phone Number:</label>
                <input type="tel" id="phone" name="phone"><br>
            </fieldset>

            <br>

            <fieldset name="professional_details">
                <label for="occupation">Occupation:</label>
                <input type="text" id="occupation" name="occupation"><br>
                <label for="company">Company:</label>
                <input type="text" id="company" name="company"><br>
                <label for="start">Start Date:</label>
                <input type="date" id="start" name="start"><br>
                <label for="end">End Date:</label>
                <input type="date" id="end" name="end"><br>
            </fieldset>
            <br>
            <input type="submit" value="Submit">
        </form>
    </body>
</html>

Legend

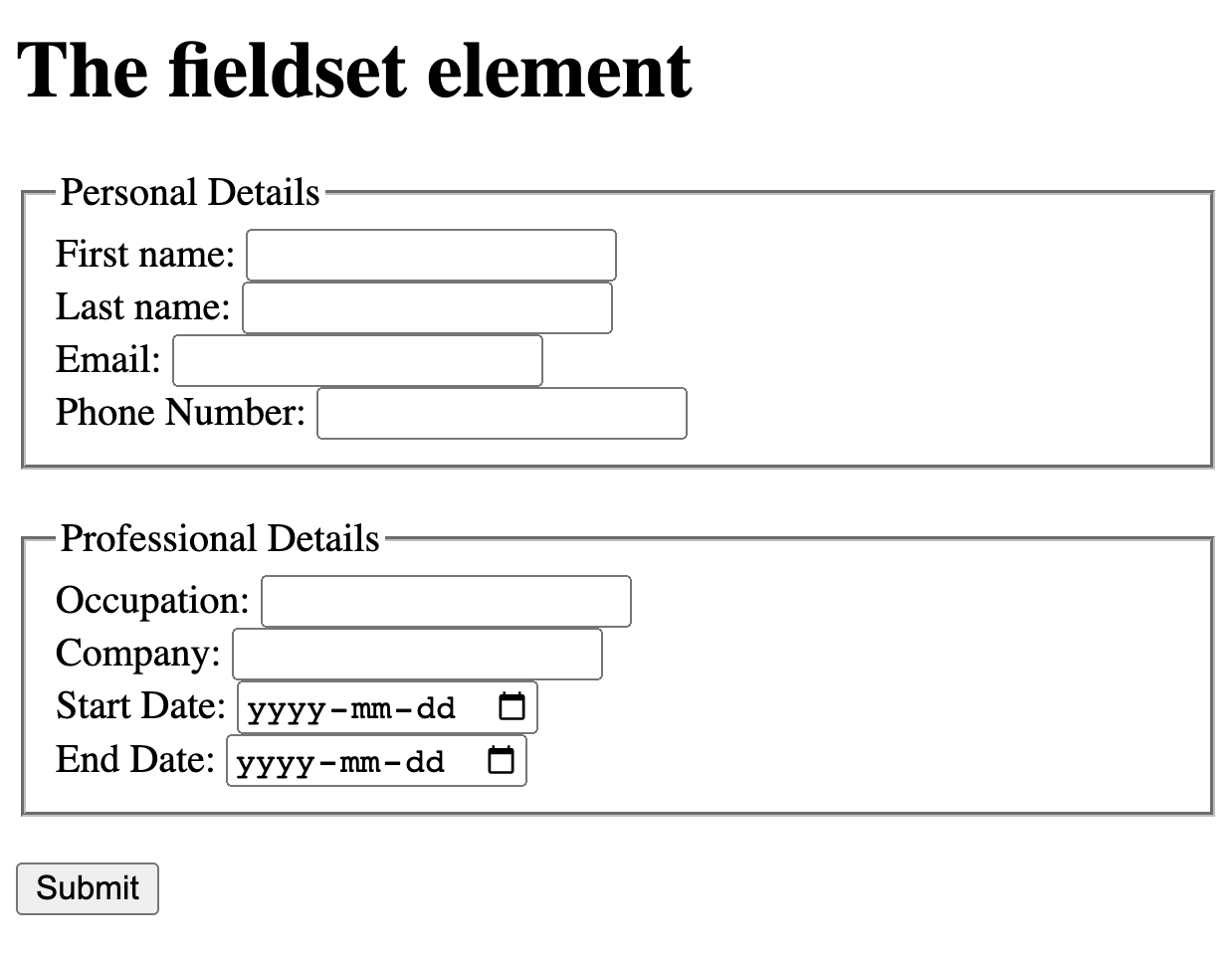

A fieldset can additionally have a title or name, which can be provided by legend.
The <legend> tag is used with the <fieldset> element as a first child (the first inner tag) to define the caption for the grouped related fields

<!DOCTYPE html>
<html>
    <body>
        <h1>The fieldset element</h1>

        <form>
            <fieldset name="personal_details">
                <legend>Personal Details</legend>

                <label for="fname">First name:</label>
                <input type="text" id="fname" name="fname"><br>
                <label for="lname">Last name:</label>
                <input type="text" id="lname" name="lname"><br>
                <label for="email">Email:</label>
                <input type="email" id="email" name="email"><br>
                <label for="phone">Phone Number:</label>
                <input type="tel" id="phone" name="phone"><br>
            </fieldset>

            <br>

            <fieldset name="professional_details">
                <legend>Professional Details</legend>

                <label for="occupation">Occupation:</label>
                <input type="text" id="occupation" name="occupation"><br>
                <label for="company">Company:</label>
                <input type="text" id="company" name="company"><br>
                <label for="start">Start Date:</label>
                <input type="date" id="start" name="start"><br>
                <label for="end">End Date:</label>
                <input type="date" id="end" name="end"><br>
            </fieldset>
            <br>
            <input type="submit" value="Submit">
        </form>
    </body>
</html>
